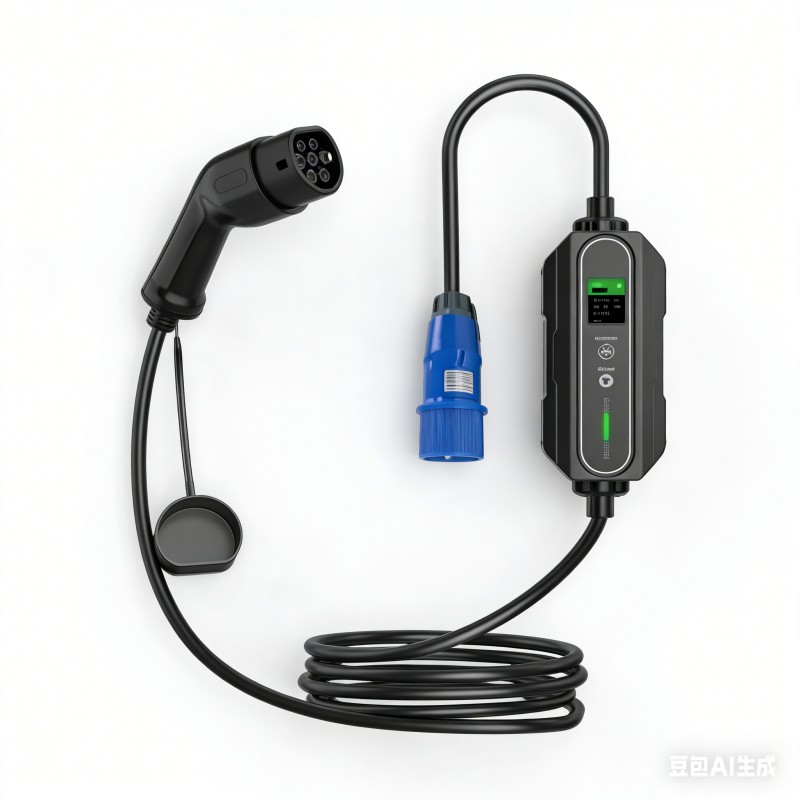

The ultimate portable EV charger. Safe, fast, and compatible with all major EV models. Experience the freedom of charging on your terms.
Detailed specifications of our portable EV charger to help you understand its capabilities and compatibility.
| Technical Features | |
|---|---|
| Rated Power | Up to 3.5kW |
| Input Voltage | 230V AC,50/60Hz |
| Output Voltage | 230V AC,50/60Hz |
| Output Current | 8A,10A,13A,16A(Adjustable) |
| Cable Length | 5m |
| Connector Type | Type 1/Type 2(Optional) |
| Protection | Over-current Over-voltage Under-voltage Over-temperature Earth Leakage |
| Safety Standard | IEC 62196,SAE J1772 |
| Physical Properties | |
| Dimensions | 200×150×80 mm |
| Weight | 2.5 kg |
| Operating Temperature | -25℃ to 50℃ |
| Storage Temperature | -30℃ to 60℃ |
| Ingress Protection | IP66 |
| Display | LED Indicator |
| Certification | CE, TÜV, UL |
| Warranty | 2 Years |
| Technical Features | |
|---|---|
| Rated Power | Up to 7KW |
| Input Voltage | 230V AC,50/60Hz |
| Output Voltage | 230V AC,50/60Hz |
| Output Current | 8A, 10A, 13A, 16A, 20A, 24A, 32A (Adjustable) |
| Cable Length | 5m |
| Connector Type | Type 1/Type 2(Optional) |
| Protection | Over-current Over-voltage Under-voltage Over-temperature Earth Leakage |
| Safety Standard | IEC 62196,SAE J1772 |
| Physical Properties | |
| Dimensions | 220 x 170 x 90 mm |
| Weight | 3.2 kg |
| Operating Temperature | -25℃ to 50℃ |
| Storage Temperature | -30℃ to 60℃ |
| Ingress Protection | IP66 |
| Display | LED Indicator |
| Certification | CE, TÜV, UL |
| Warranty | 3 Years |
Find answers to common questions about our portable EV charger.
Yes, our portable EV charger is compatible with all major EV models including Tesla, BYD, Volkswagen, Audi, BMW, Nissan, and more. It comes with either Type 1 or Type 2 connector options to match your vehicle’s charging port. For Tesla vehicles, you may need an additional adapter (not included).
The main difference is the maximum charging power. The 3.5kW model is suitable for standard household outlets and provides a slower but more accessible charging option. The 7kW model offers faster charging speeds and requires a higher power outlet (like those used for electric stoves or dryers). The 7kW model also features an LCD screen instead of LED indicators and comes with a longer warranty.

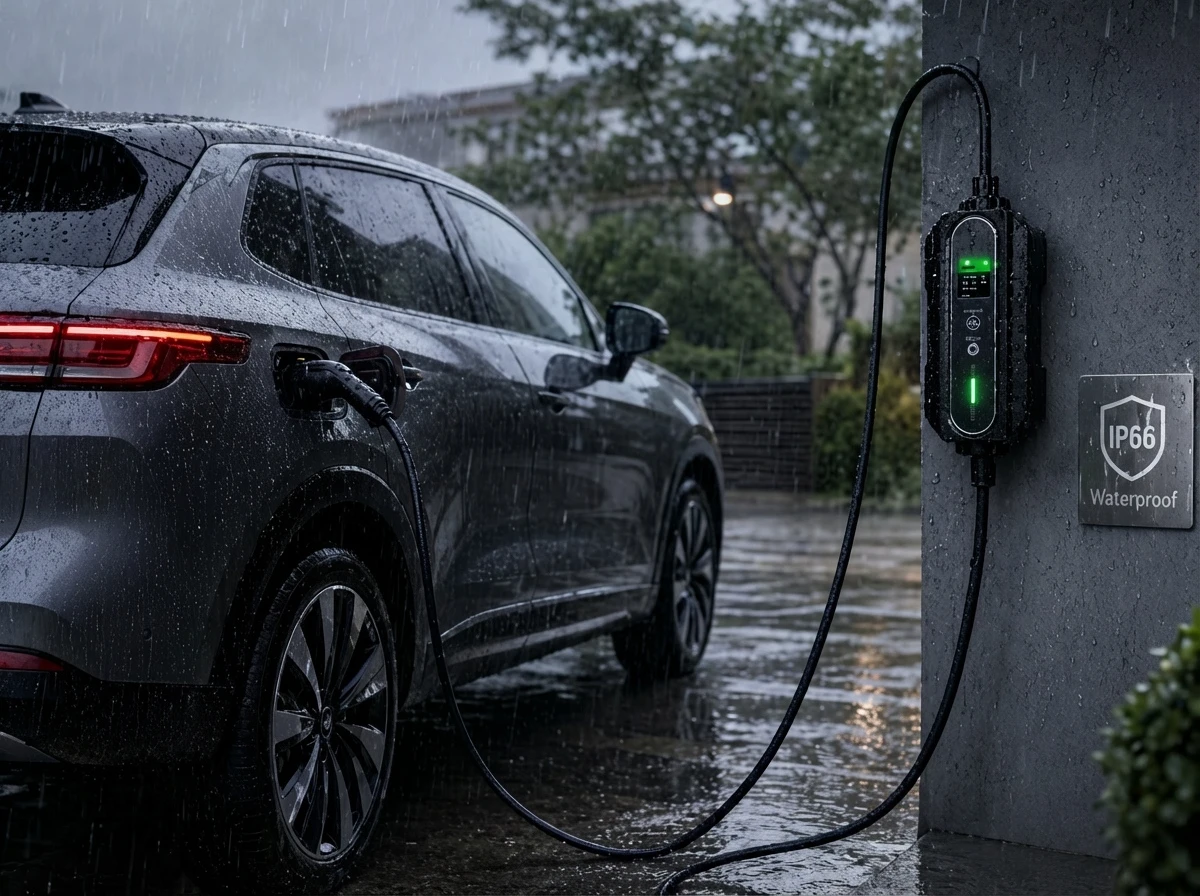

Yes, our portable EV charger has an IP66 ingress protection rating, which means it is dust-tight and protected against powerful water jets. It is designed to be used outdoors in various weather conditions, including rain. However, we recommend avoiding submersion in water and extreme weather conditions for optimal safety.
Charging time depends on several factors including your vehicle’s battery capacity, current charge level, and the power setting used. As a general guide, the 3.5kW model can add approximately 10-15 km of range per hour of charging, while the 7kW model can add 20-30 km of range per hour. For a full charge from empty, it may take 8-12 hours with the 3.5kW model or 4-6 hours with the 7kW model.
The 3.5kW model comes with a 2-year warranty, while the 7kW model includes a 3-year warranty. The warranty covers manufacturing defects and malfunctions under normal use conditions. It does not cover damage caused by improper use, accidents, or unauthorized modifications.
